30055 Go E85 2×4 Power Adder 1200HP EFI System, Brilliant

FiTech Fuel Injection is proud to offer the Go E85 2×4 1200HP (1600 N/A) Power Adder System, a high-performance dual quad EFI solution that combines the timeless appearance of a traditional dual four-barrel setup with the advanced technology and drivability of modern electronic fuel injection.

Built around FiTech’s latest-generation throttle body architecture, the same proven design found on the 30064 and 30065 systems, the Go E85 2×4 Power Adder System delivers enhanced airflow, precise fuel control, and outstanding throttle response for demanding performance applications. Whether powering a naturally aspirated street machine or a turbocharged, supercharged, or nitrous-assisted race vehicle, the system provides the fuel delivery capacity required to support serious horsepower.

Equipped with eight 130 lb/hr injectors flowing at 58 PSI, the Go E85 2×4 Power Adder System is capable of supporting up to 1,600 horsepower on gasoline and up to 1,200 horsepower on E85. FiTech’s self-learning EFI technology continuously adjusts fueling to improve drivability and simplify tuning, making it easier than ever to achieve reliable performance.

Key features include:

• Dual quad EFI system utilizing FiTech’s latest-generation throttle body design

• Eight 130 lb/hr injectors at 58 PSI for high-performance fuel delivery

• Supports up to 1,600 horsepower on gasoline and 1,200 horsepower on E85

• Ideal for turbocharged, supercharged, nitrous-assisted, and high-output naturally aspirated engines

• Self-learning EFI technology for improved drivability and throttle response

• Maintains the aggressive appearance of a traditional dual quad induction setu

• Application: Chevrolet, Pontiac, Ford, Chrysler, Dodge, Plymouth, Etc. engines making 250 HP up to 1200 HP with a dual quad intake manifold.
• Replacement for any dual quad carburetors for engines with 250 HP up to 1200 HP.
• Use the same size air cleaner you would normally use for your dual quad carburetors.

View All 30064 Master Kits
Not legal for use on pollution controlled vehicles. This system is designed to be retrofit into vehicles that do not require emission controls.

Features

• 2.5 BAR internal MAP sensor.
• Suitable for up to 1200hp on E85, 1600hp on gasoline. .
• (8) Flow matched injectors.
• (2) Fan control.
• Blower and turbo ready.
• Support for Nitrous.
• Boost and Nitrous timing.
• Ignition timing control.
• Built-in pressure regulator.
• Air/Fuel Ratio tuning.
• Pro-tuning laptop software.
• Matte black finish.

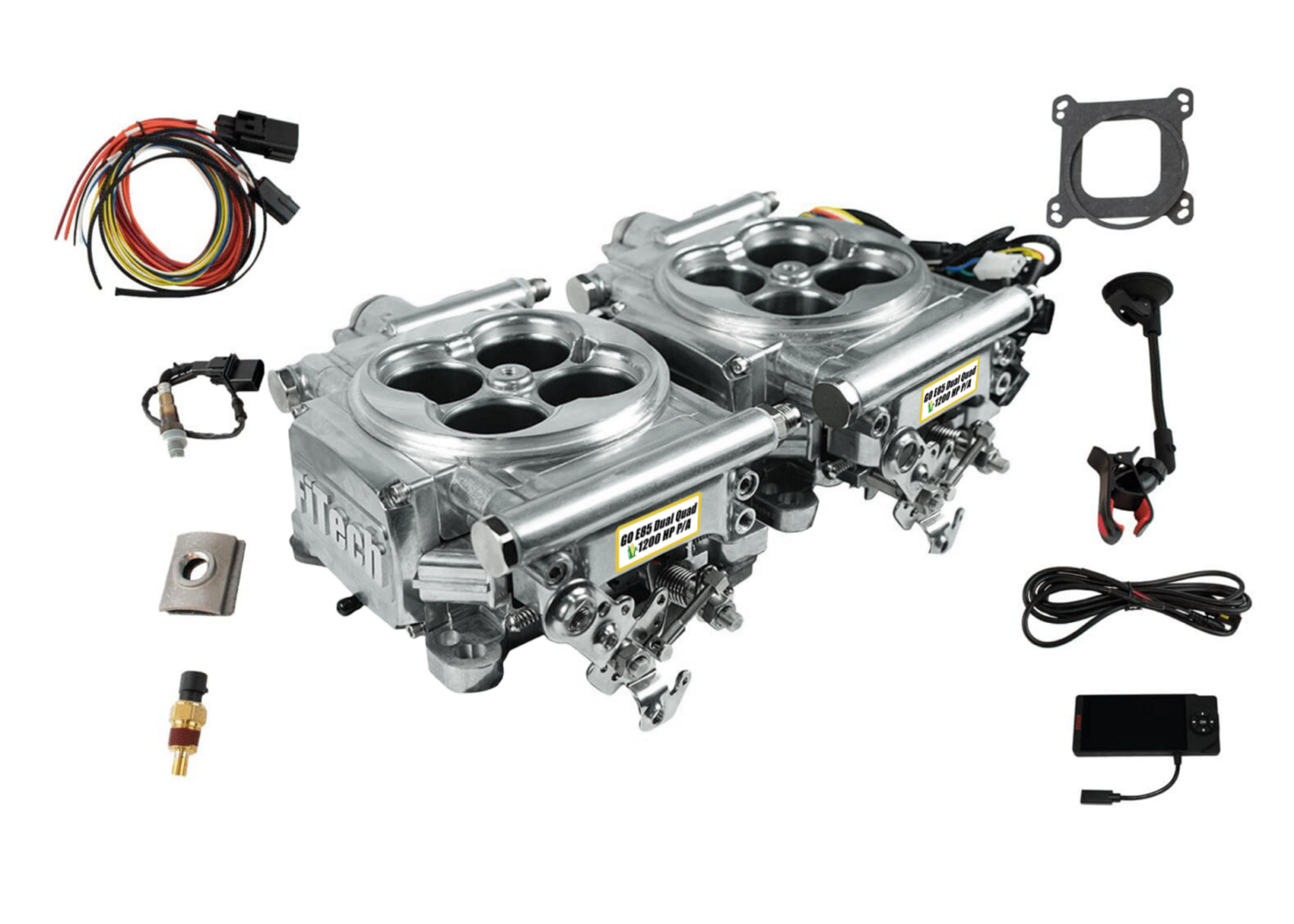

Kit Contents

• (2) Die-cast throttle body.
• (1) O2 bung kit.
• (1) Hand-held controller.
• (1) CTS sensor.
• (1) Hand-held controller cable.
• (1) CTS adapter.
• (1) Windshield mount.
• (1) Mini USB cable.
• (1) 4+2-Pin Connector.
• (2) Return plug.
• (1) O2 sensor.
• (1) Gasket kit.
